Friday, January 27, 2012

Shipping Container Cabin Update

A post I wrote about shipping container homes (which you can find here) in May of last year gets lots and lots of hits every day - like often up to seven times as many hits as the next most popular post.  That's a lot of interest in shipping container homes!  I'm not surprised at the interest in shipping container homes, though, because they are just so inspiring.  I would love to get my hands on a couple of shipping containers and do a little creating myself.  Of course, that isn't going to happen anytime soon (although you notice I'm not ruling it out for the future) so I have to satisfy my interest by keeping up on other people's container homes.



I contacted the owner of this wonderful cabin that I showed in my original post to see if he would mind me using more of his photos in a blog post.  Well not only was Steve (see how I'm on a first name basis with him now) pleased to let me use his photos, but he took a bunch more for me as well.  It turns out Steve is married to a Speech-Language Pathologist so you can see why he would be so charming - it goes with the territory.

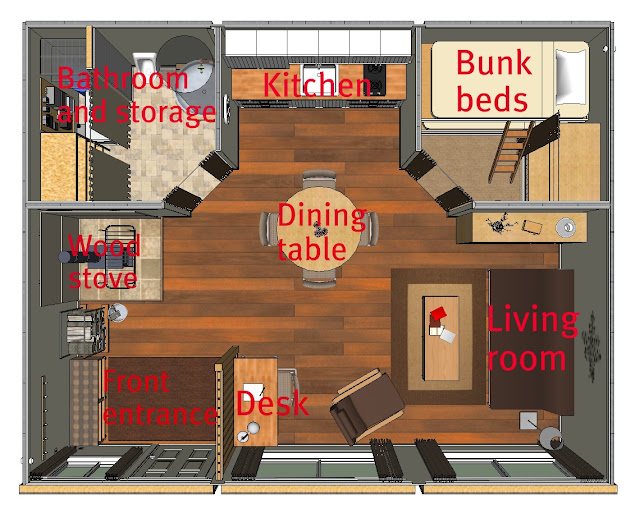

Last fall Steve and his wife painted the exterior a warm beige colour (good choice Steve's wife) and have been working away completing the interior.  I'm excited to welcome you inside Steve's little cabin in the woods.  I have uploaded both labeled and unlabeled floor plans so you can have an idea what direction the pictures are taken.



This is the view from the front door looking over to the right to the sofa (a pull-out bed) and chair in the sitting area.  You can also see the bedroom through the doorway on the left.  The ceiling shows the corrugated grooves from the shipping containers.



I love the simple white kitchen - white kitchens are always my favourite!




Behind the curtain is the bathroom/utility/storage room.




A nice little wood stove is tucked into the corner to keep things warm.



I understand the desk is going to have a half-wall built behind it to separate the front entrance from the living room.



And finally, looking out the windows to the forest.




... and the forest.




I've been studying these photos and peppering Steve with questions about the details of his cabin so I thought I would share what I have learned.


Steven's main concerns were to keep the costs down and to make the cabin easy to maintain.   He chose to build using shipping containers because of security issues.  When he leaves his cabin, he simply closes and locks the doors at the end of each of the three containers.  There are no other windows or doors so it pretty much morphs from sweet little cabin to Fort Knox.


The cabin is off-the-grid so is powered primarily by solar panels.  The microwave oven that you can see in some of the kitchen pictures will soon be going as it is run on the generator that is being used while the construction is going on.  He has installed a two-burner stove and may purchase an oven that cooks on the stovetop and is very popular with the boating community.  He was unable to find a refrigerator that would work on the solar panels so he is using a small Coleman cooler that runs on a battery and is kept in the storage room and he may upgrade down the road.  For more kitchen details read this post.




Steven is in the process of looking into restoring an old well that is on the property.  Even if the water is not drinkable, it will be very useful for washing up etc.  There are plans to install a water system with a storage tank in the bathroom/storage room and build a homemade shower in there as well.  The problem with most water systems is dealing with them in the winter so Steve is looking to install an indoor water system that can be used in the winter with minimal fuss.  At the present time he brings in water to use for drinking and cooking and they have an outhouse.  You can see in the photo below the temporary water system he has in the kitchen using a vintage water cooler.




I think this little cabin is great - it's kind of like the Boxcar children meet IKEA (did you ever read that story?  Kate and I both read it when she was young and loved it).   You can read more details and see the progress pictures on Steve's blog, Tin Can Cabin.


This is definitely a cabin I'll be keeping my eyes on to see how it develops and changes as Steve and his wife use it.

Monday, May 2, 2011

Shipping Container Homes - 6 Inspiring Plans

Whenever I see shipping containers, my inner architect kicks into high gear and I start planning and designing homes and cottages in my head.




Anyone else do this? Hmm. I thought not.  Well anyway I'm a bit obsessed with them.  I think it would be such a fun challenge to create a functional yet beautiful cottage or home from discarded shipping containers.  Each shipping container costs about $3000 (delivery included, although prices vary) so they really would make an inexpensive structure.  Not only are shipping containers an economic housing material, but they also work well in places that are prone to extreme weather conditions and problems with termites and insect infestations.


Shipping containers are 8 feet wide and come in a variety of lengths (from about 20 to 40 foot lengths) so they can be arranged in many different ways to make a workable home.


Ross Stevens House in New Zealand (source)
Although I can appreciate the concept of houses like the one in the photo above - and when you start researching shipping container homes there are many unique ones like this - I would never feel comfortable living in such a modern cottage or house.  I like a peaked rather than a flat roof, siding on the outside of the building, and a little coziness.  So I set out to see if I could find some inspiring container homes/cottages that fit those requirements.


I found some great examples and even got out the old drawing board (well Paint program anyway) to come up with some basic sketches to illustrate how the shipping containers are arranged.  Let's have a look at the six different arrangements I found:


1)  Adjoining Arrangement - The simplest and most cost effective arrangement would involve placing several shipping containers side-by-side.




The home below is 24 x 40 and consists of three shipping containers placed side-by-side. The plan calls for the metal walls to be removed where the shipping containers touch each other, adding new interior walls, as well as siding on the outside, and a peaked roof.


Snap Space Solutions
The floor plan for this house has three bedrooms - two are 8 x 12 feet and the master bedroom is 12 x 16 while the central living area is 16 x 24.  I really like the simplicity of this arrangement.




The cabin in the photo below is also made using three containers placed side-by-side.  The man who is building this cabin wants to make a very secure cabin so that it won't be vandalized when they aren't there.   They didn't want to cut any windows or doors in the sides of the building and are only going to use the ends where the shipping containers open for doors and windows.  That way when they are finished visiting the cabin, they simply close the original shipping container metal doors and the cabin is secure.  You can read more details here.  (UPDATE: You can read more about this cabin and see some photos of the interior here).


Cabin with the doors open (Tin Can Cabin)

Cabin with the exterior doors shut


Floor plan for the Tin Can Cabin


I also found some other great designs using the side-by-side arrangement of shipping containers through IDS Products.


2)  Staggered Arrangement - An alternate version of the adjoining arrangement would be the staggered plan, whereby the home is made of three shipping containers, but one or more of the containers is staggered to form a more interesting arrangement.




In the home pictured below, they used the staggered arrangement to allow for a screened porch and because they extended the roof, a covered carport.


Container House


Floor plan for the Container Home shown in the photos above


They plan to paint the exterior a unified colour, but are not going to add siding.  The interior is still being constructed, but I love some of the details they have used and how cozy the kitchen is.  This is definitely a home I'm going to keep my eye on to see how it looks when it is finished.


kitchen of the Container House


3)  Bridge Arrangement - In the bridge plan two shipping containers are placed parallel to each other and are used as solid exterior side walls.  A roof is built over top from one container to the other forming an interior space.  I couldn't find an example of this arrangement with a peaked roof, but I thought it was a clever design so I'm including it.




In the home pictured below you can see the shipping containers on either side with the shed roof linking the two together and creating the interior living space.


Modern House Magazine



4)  Random Arrangement - The home in the picture below was built by a couple living in Quebec and is made using seven shipping containers - some stacked, some side-by-side, and some placed at different angles.  They have covered the containers with insulation and siding, but left the corrugated metal visible on the inside of their home.


Exterior of the home (Maison IDEKIT)

Kitchen and dining area (Maison IDEKIT)




Floorplan (Maison IDEKIT)


The couple who built this home were so pleased with the reduced costs, the speed of construction, and the positive effect on the environment from using shipping containers that they have started their own company building modular homes from used shipping containers.  You can see their designs, mostly of the bridge arrangement (see #4) here at Maison Idekit.


5) Stacked Arrangement - This plan can have many variations depending on how many containers are used on each floor.  In the following two houses they have used two up and two down.  Unfortunately I was not able to find floor plans for either of these homes.


Tiny House


Cranberry Isles


6) U Arrangement - I was not able to find a picture of a home using a "U" shaped arrangement of shipping containers, but I do think it is worth considering as the containers would form an area for a lovely courtyard or screened porch in the centre which is a welcome addition to a cottage.  The exterior could be designed to have a traditional look.





Floor plan for a home using three shipping containers in a "U" configuration (r / one studio architecture)

I know your head is probably spinning from the variety of arrangements and you are just itching to Google how to find your own source of shipping containers so you can start building. I feel the same way.  Aren't they amazing?

Linked to Good Life Wednesday at A Beach Cottage
